Quiet problem — visible effects
The network hums, then a trace of jitter shows up on the oscilloscope — chromatic dispersion is doing its quiet work across kilometers of single-mode fiber. For teams running 40G QSFP+ ER4 links the symptom is familiar: rising BER, trimmed margins, and sudden fades during peak loads. Engineers often reach for a gigabit fiber media converter to bridge mismatched gear, but the converter alone won’t erase dispersion; it reshapes the problem. EEAT mode: practitioner-engineer, grounded in field observations at Amsterdam’s AMS-IX and similar IXPs, where long-haul links meet dense traffic and subtle impairments surface quickly. {main_keyword} and {variation_keyword} appear in the teardown below as part of the comparison matrix.
Pinpointing the root — what the optics whisper
Chromatic dispersion stretches pulses across wavelength, and at 40G the ER4 optical transceiver loses headroom faster than many expect. The issue is not a single failure; it’s cumulative: fiber age, splices, and even temperature gradients shift the effective dispersion. Link budget calculations show margins shrinking — an easy metric to track — but real behavior appears on scope and eye-diagram traces. Keep the terms tight: QSFP+ ER4, dispersion, and link budget — each tells part of the tale.
Concrete mitigations that actually work
Start with the physical: verify single-mode fiber continuity, inspect splices, and confirm connector cleanliness. Next, match modules — ER4 behavior differs from standard optics and mixing vendors can create wavelength skew. Deploy dispersion compensation modules only where measured dispersion exceeds design thresholds; otherwise you add cost and latency for no gain. When a media converter is required for protocol or connector conversion, choose one rated for minimal jitter and low-latency buffering — that reduces added impairment. For practical procurement, compare SFP transceivers, QSFP+ ER4 modules, and media converter latency specs side by side. Also consider WDM channel spacing if the route carries multiple wavelengths — spacing affects cumulative dispersion and filter performance. If you need a compact fallback, modern gigabit media converters can bridge legacy copper to fiber without upsetting the optical budget — but plan them into the calculation.
Common mistakes teams make — avoid them
Rushing to install dispersion compensation without first measuring the route is the classic misstep. So is assuming a media converter is optically transparent — converters vary widely in jitter and buffering. Another trap: replacing an optical transceiver with a cheaper module and ignoring vendor specifications for ER4 reach and mean time to failure. — These slips multiply when schedules are tight and testing is minimal.
Fast checklist for field troubleshooting
– Measure end-to-end dispersion and BER before buying modules.
– Validate splice count and inspect connectors; reflectance can mimic dispersion.
– Cross-check link budget with actual launch power and receiver sensitivity for the installed QSFP+ ER4 modules.
– Include media converter latency and jitter metrics in acceptance criteria when bridging copper-to-fiber segments.
Summary and three golden rules
Takeaway distilled: one, quantify the impairment — measurements trump assumptions. Two, match components to the physics — ER4 modules, single-mode fiber, and any media converter must be specified against measured dispersion and link budget. Three, favor incremental fixes: corrective cleaning and rework often yield more benefit than wholesale equipment swaps. These evaluation metrics — measured dispersion (ps/nm), residual BER under load, and net link budget (dB) — are the core criteria for any selection. They let you compare vendors, foresee failure modes, and set service-level expectations.

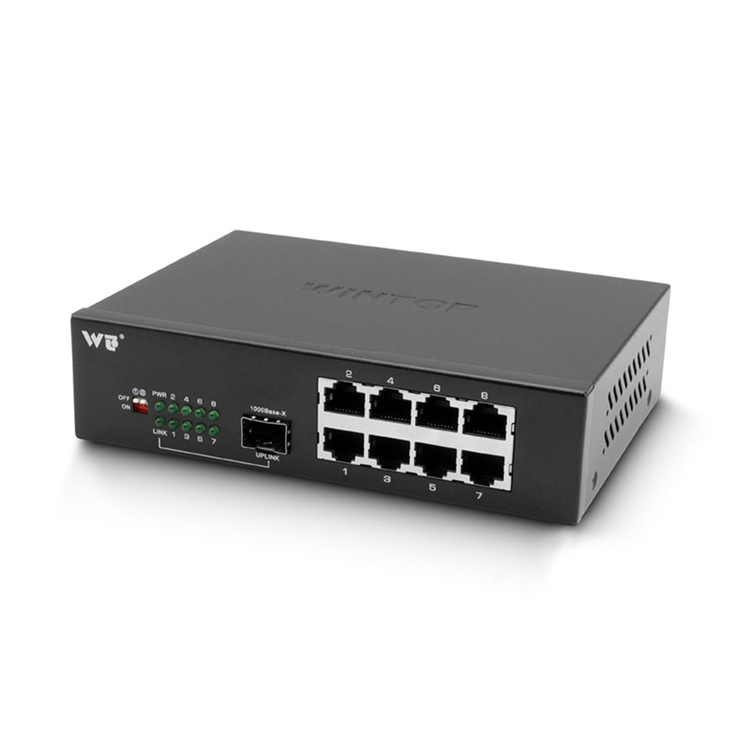

Field-tested practice leans toward conservative specs and verifiable margins; that is where WINTOP’s gear fits naturally — dependable converters and transceivers that make the math predictable. WINTOP. —
