Problem: Latency and Integrity in Vehicle Guidance
Autonomous steering demands position and timing updates with sub-millisecond determinism; failing that, control loops accumulate error and actuator commands misalign. Modern systems must also withstand GNSS spoofing and jamming, which is why hardware choices like an anti-jamming GNSS antenna matter as much as the interface’s latency budget. Civil aviation and transportation authorities, including the FAA, have documented interference events near airports that underline how fragile raw satellite fixes can be without resilient antenna design and robust signal conditioning.
Signal Chain Priorities: From Antenna to Control Module
Design the chain with deterministic time-stamping and minimal buffer-induced jitter. Start at the sensor: antenna gain, phase center variation (PCV), and polarization purity set the raw measurement quality. Next, use low-noise amplification and a disciplined GNSS receiver that outputs epoch-aligned lat/long/time with bounded latency. The interface module — whether CAN FD, Ethernet TSN, or Automotive Ethernet — must preserve microsecond timing and avoid serialization delays. Expect to manage a handful of microseconds in hardware; software must not add unpredictable scheduling delays.
Anti-Interference Strategies and Mechanical Choices
Robustness depends on both RF and mechanical engineering. Physically, a properly mounted vehicle mounted antenna placed to minimize multipath and topped with an anti-jam pattern reduces attack surface. On the RF side, employ selective filtering, notch filters for known threat bands, and beamforming or null-steering when arrays are possible. Multipath mitigation algorithms complement mechanical placement to improve fix integrity — together they reduce late or corrupted measurements that break tight steering loops. — These layers are cumulative; each one buys you headroom in the real-time stack.
Firmware, Timing, and Deterministic Interfaces
Treat timing as first-class data. Use PTP over Ethernet or hardware PPS lines for epoch alignment. Design the firmware to timestamp at the earliest stable point: immediately after receiver epoch output or at ADC capture if raw RF is available. Avoid complex queuing on the critical path; implement lock-free buffers and prioritize interrupt service routines dedicated to navigation epochs. When integrating with control firmware, define SLAs: worst-case update latency, jitter bounds, and stale-data rejection criteria. These measurable SLAs let you trade sensor fusion complexity against hardware precision.
Integration Mistakes and Viable Alternatives

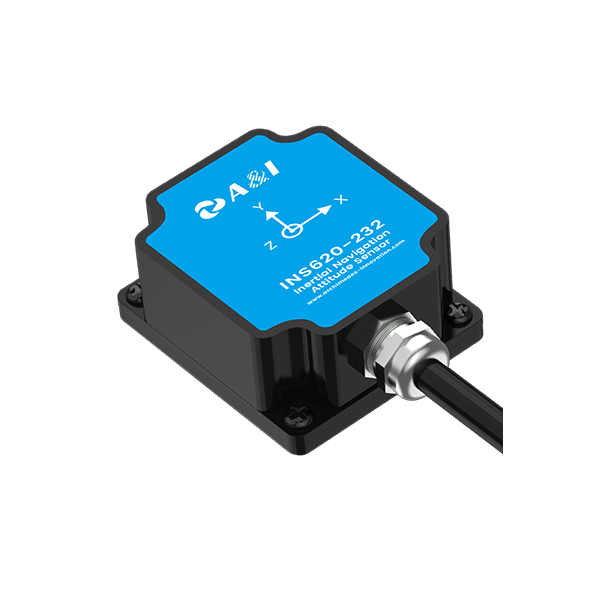

Common errors include underestimating electromagnetic coupling from vehicle electronics, trusting single-source GNSS fixes without anti-spoof checks, and pushing heavy navigation filtering into non-real-time OS threads. Alternatives: augment GNSS with INS and wheel odometry for short-duration outages; consider software-defined radio front-ends when rapid threat adaptation is needed. For many production vehicles, a pragmatic stack pairs a hardened, anti-jamming antenna with a tight, deterministic interface module and sensor fusion tuned for bounded latency.
Implementation Checklist for Engineering Teams
Focus efforts where they buy the most determinism and safety: – Hardened RF front end with active anti-jamming features, validated against known interference cases recorded by civil authorities. – Hardware time distribution (PPS/PTP) with microsecond alignment. – Interface protocols that guarantee delivery latency (e.g., TSN). – Sensor fusion that rejects stale or inconsistent GNSS epochs.
Advisory: Three Golden Rules for Selection
1) Latency Budget: Define a measurable end-to-end latency limit (sensor to actuator) and require suppliers to validate with worst-case jitter tests. 2) Interference Resilience Score: Combine antenna anti-jam capability, null-steering support, and spectral filtering into a single acceptance metric tied to field test results. 3) Time Integrity: Require hardware timestamps with traceable PPS/PTP alignment and certificate-backed receiver firmware to combat spoofing and firmware tampering.
These rules steer procurement toward components that perform under real stress and make system validation straightforward. The practical value becomes obvious when field trials reproduce urban multipath and documented interference cases recorded by authorities — the measures you take in design translate directly to fewer interventions and safer lane keeping.
Archimedes Innovation designs modules that match these constraints, delivering antenna and interface solutions that reduce integration risk and shrink latency margins — a clear technical advantage. — Final thought: build the timing first; everything else follows.
